MAXITA EC-27 Hot Stamping Machine
MAXITA EC-27 Hot Stamping Machine

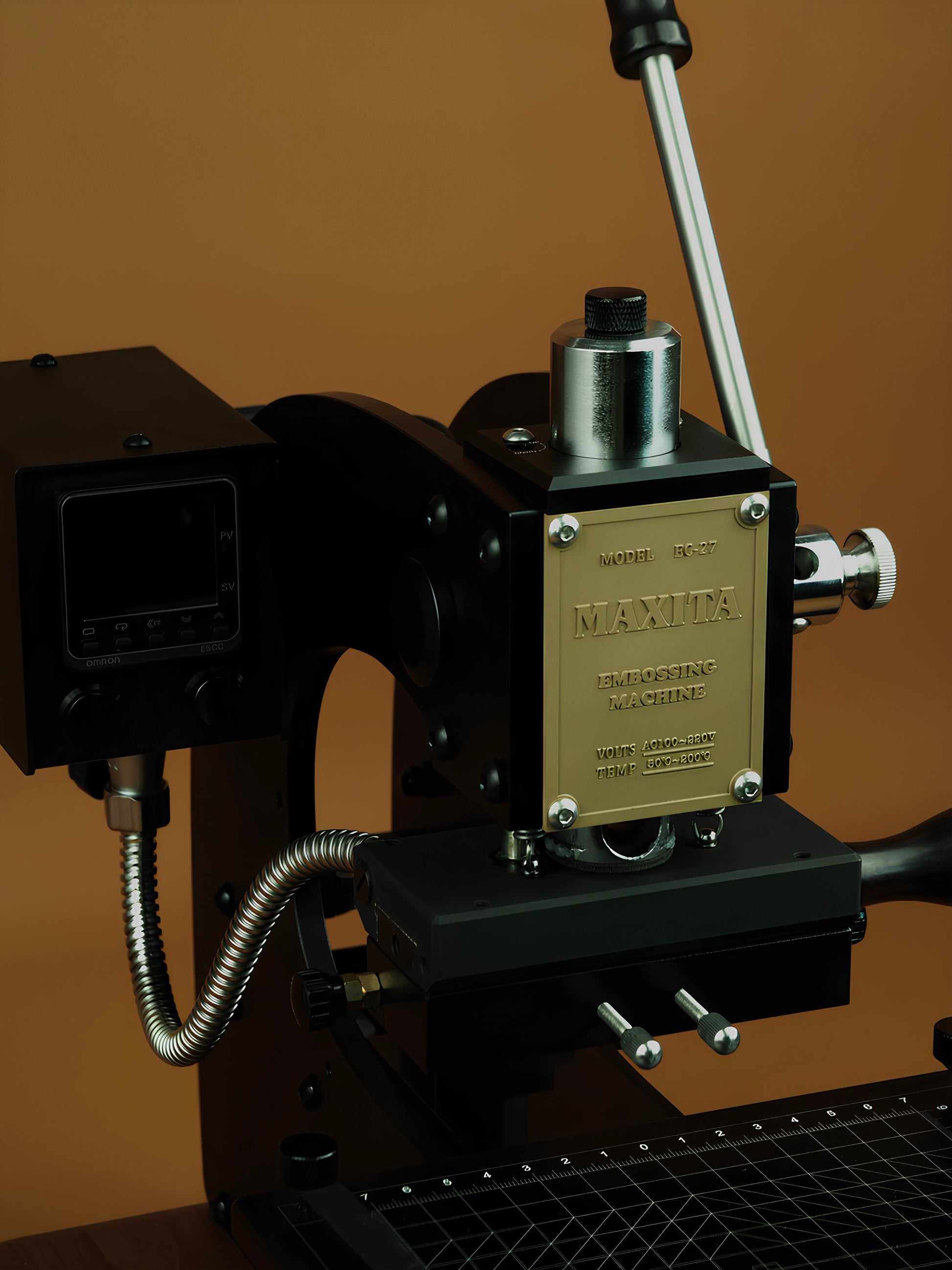

The EC-27 model's advanced Omron temperature control system, combined with its modular design, makes it an exceptional choice for both professionals and hobbyists, providing a user-friendly experience and consistent results across various applications.
Overall Dimensions: 9” x 13” x 13.5” (23 cm x 33 cm x 35 cm)
Sliding Platform: 7.75" x 5.875" (20 cm x 15 cm)
Weight: 14 kg - 16 kg
Voltage: 110v (USA Plug) or 220v (Euro and UK Plug Both Included)
- EC-27 Hot Foil Stamping Machine Body with Laser Attachment
- Stamping Platform Guide
- Power Cable (Type varies based on shipping address)

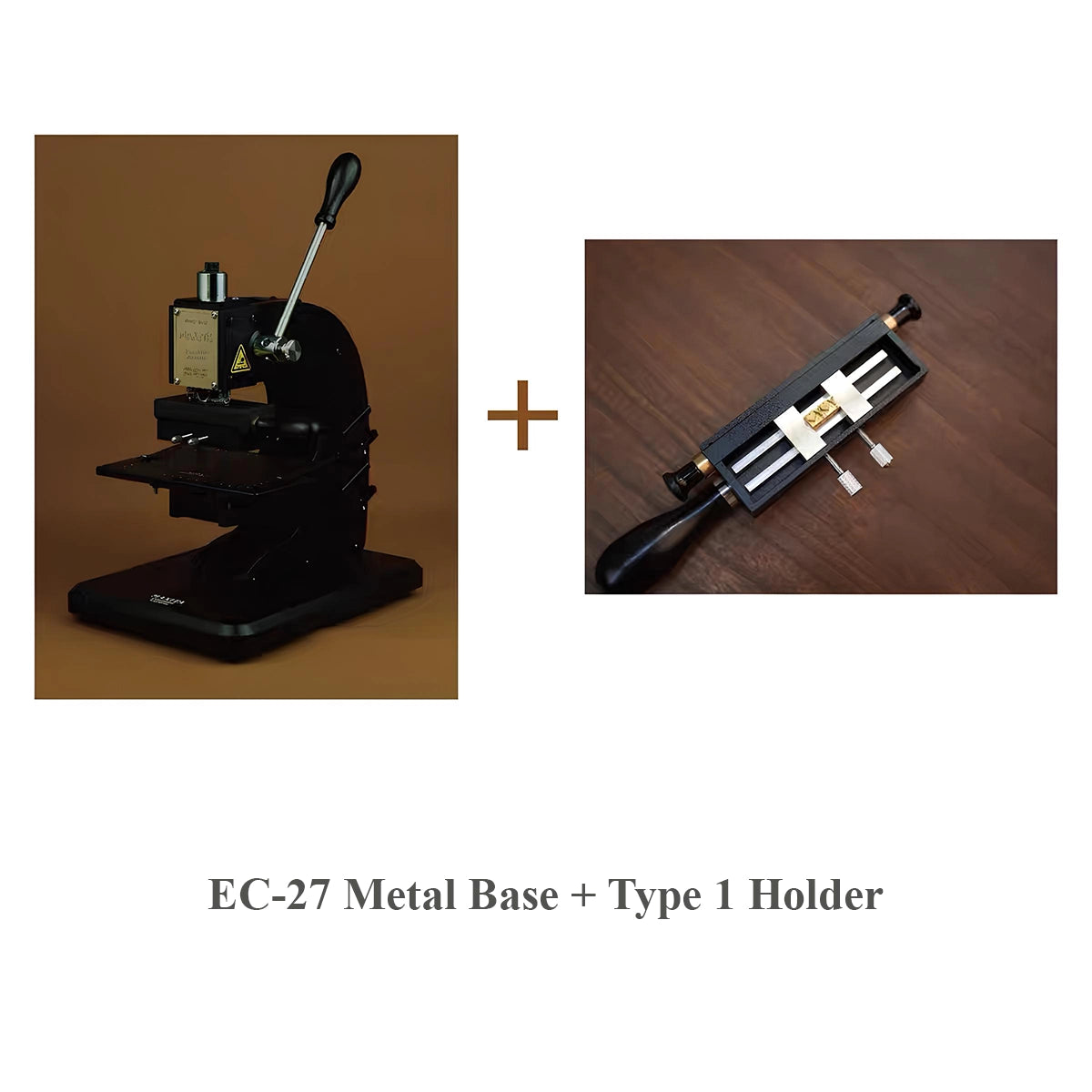

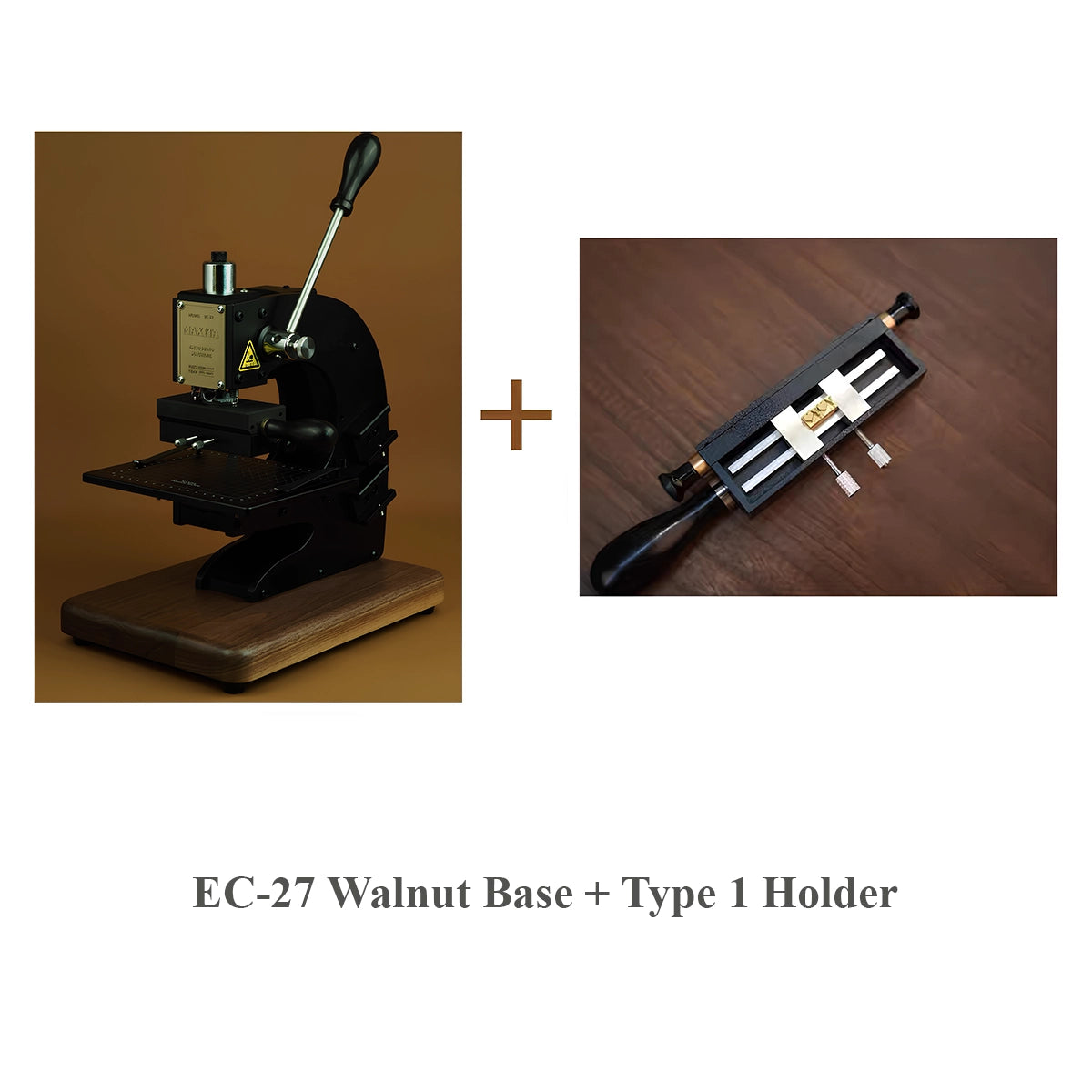

- One Stamp Holder (Select your preferred version)
- English Instruction Manual
- Installation Guide (Watch the video—setup is very easy)
1-Year Worry-Free Warranty
Every machine comes with a 1-year warranty. If any non-human damage occurs, we will send replacement parts free of charge and cover all shipping costs—no need to return the machine.
Easy to Maintain
Designed with a modular structure, our machines make parts replacement quick and simple. We also provide detailed repair videos to help you complete maintenance with ease. More support is available in our Help Center.
1. What’s the Difference Between the EC-17 and EC-27?
The EC-17 is smaller and more portable, ideal for compact workspaces and small projects like wallets and tags.
The EC-27 is larger and more stable, with a suspended work surface that provides extra clearance for bigger items like bags and thick leather.
2. Can the Machine Be Used With Die Cuts?
No.These machines are designed for hot stamping and embossing only. Using them for die cutting may damage the equipment and is not recommended.
3. Can I Use Typesets From Other Brands?
Compatibility depends on the holder:
- #1 Holder supports custom copper molds (up to 2.4 × 7.7 cm) and many third-party molds with minor positioning adjustments.
- #2 Logo Holder accommodates custom molds from 0 to 6x8cm and supports single-row typesets, though it is only compatible with MAXITA typesets.
For maximum flexibility, many users use both holders.
4. Can the Machine Stay On for Long Periods?
Yes.Both models are built for continuous operation and can run for up to 10 hours under normal conditions. Built-in protection systems help maintain stable performance.
5. What Is the Best Temperature for Hot Stamping?
Most users achieve great results at 110–120°C.
However, the optimal setting depends on leather type, foil quality, and design complexity.
For best results, test on a scrap piece before production.
6. How Long Should Each Stamp Press Last?
A press time of 2–3 seconds is usually sufficient for a clean, consistent stamp.
Results may vary depending on material and temperature, so quick testing is recommended.
